Metal-Free Ketjenblack Incorporated Nitrogen-Doped Carbon Sheets Derived from Gelatin as Oxygen Reduction Catalysts
- Journal
- Nano Letters
- Vol
- 14
- Page
- 1870-1876
- Year
- 2014
- Link
- https://pubs.acs.org/doi/10.1021/nl404640n 552회 연결

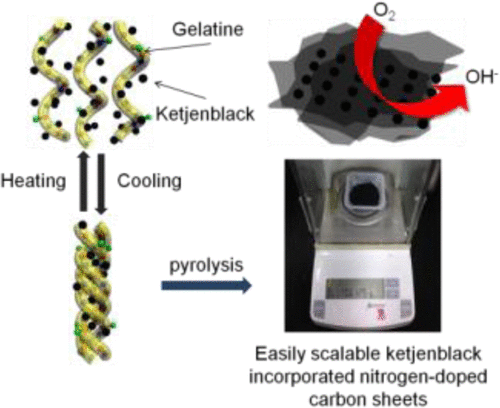

Electrocatalysts facilitating oxygen reduction reaction (ORR) are vital components in advanced fuel cells and metal-air batteries. Here we report Ketjenblack incorporated nitrogen-doped carbon sheets derived from gelatin and apply these easily scalable materials as metal-free electrocatalysts for ORR. These carbon nanosheets demonstrate highly comparable catalytic activity for ORR as well as better durability than commercial Vulcan carbon supported Pt catalysts in alkaline media. Physico-chemical characterization and theoretical calculations suggest that proper combination of graphitic and pyridinic nitrogen species with more exposed edge sites effectively facilitates a formation of superoxide, [O2(ad)]−, via one-electron transfer, thus increasing catalytic activities for ORR. Our results demonstrate a novel strategy to expose more nitrogen doped edge sites by irregular stacked small sheets in developing better electrocatalysts for Zn-air batteries. These desirable architectures are embodied by an amphiphlilic gelatin mediated compatible synthetic strategy between hydrophobic carbon and aqueous water.
